Mechanical Brakes

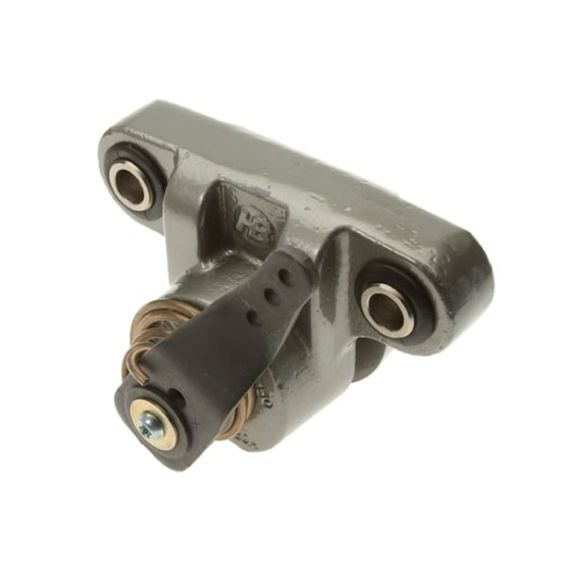

M90 Mechanical Brakes

  • Capable of 9,000 lbs. of clamp force
  • One piece cast iron housing
  • Efficient ball ramp actuation
  • Sealed actuation mechanism
  • High coefficient friction material
  • Durable, low cost mount with sealed bushings
  • Pads changed by removing one mount bolt
  • Capable of parking a wide range of vehicles
  • Choice of CW or CCW lever actuation
  • Mechanical brake for secondary stop or park

  • Weight
    13 Lbs.
    Rotor Diameter
    10 To 18 In.
    Rotor Thickness
    .375" To 1.00"
    Lining Type
    Non-Asbestos Organic, Semi-Metallic, Sintered
    Total Lining Area
    9 Sq. In.
    Usable Lining Thickness Per Pad
    .125 In.
