Spring Applied Hydraulic / Air Release

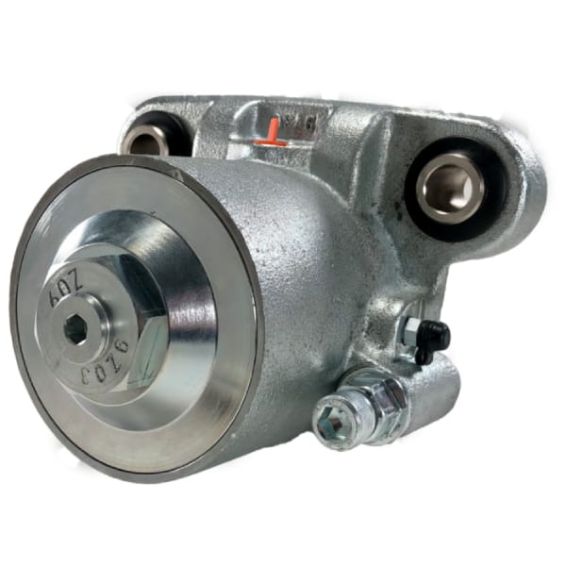

M90 Integrated SAHR

  • Capable of 7,500 lbs. minimum of parking clamp force and 9,200 lbs. maximum
  • Sealed actuation mechanism
  • One-piece iron housing
  • Self-adjusting mechanism
  • Maintains consistent clamp force
  • Eliminates required pad adjustment by end user
  • Minimizes warranty due to end user interface
  • Compact size ideal for driveline mounting
  • Low hold-off pressure (Hyd Oil)
  • Simple low torsional load mounting
  • Common tool manual release access
Send a Request

  • Mechanical parking brake with Integrated Spring Actuated Hydraulic Release (ISAHR)

  • Weight
    ~21 Lbs.
    Rotor Diameter
    10'' to 24''
    Rotor Thickness
    .375'' to 1.00''
    Lining Type
    Sintered (Organic & Semi-Metallic Possible)
    Total Lining Area
    4.5 Sq. In.
    Usable Lining Thickness Per Pad
    125''
