Spring Applied Hydraulic / Air Release

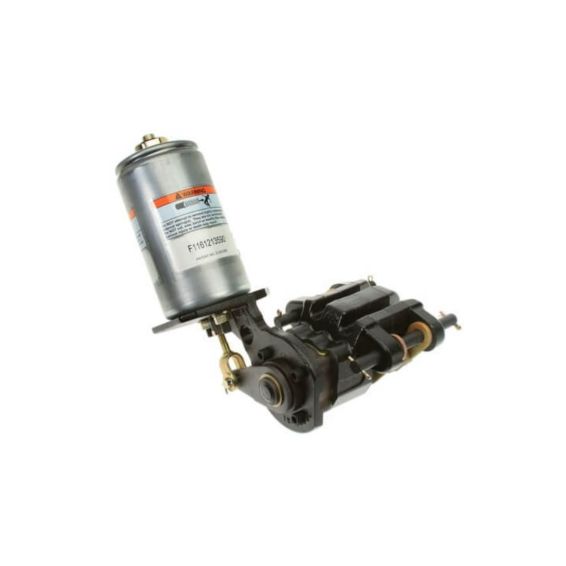

M100SH - Mechanical Brake

  • Capable of 10,000 Lbs. of clamp force
  • Self adjusts for friction pad wear
  • Fully assembled with spring chamber capable of being rotated in 90 degree increments
  • Quick change pads, retained by mount pins
  • Fully sealed internal ball ramp mechanism
  • Capable of a 40 millisecond response time
  • Spring will have less than 2% creep in normal applications
  • Mechanical released using a wrench on chamber pull rod
Send a Request

  • Mechanical brake - spring applied hydraulic release

  • Weight
    48 Lbs.
    Rotor Diameter
    10 To 40 In
    Rotor Thickness
    .500" To 1.0"
    Lining Type
    Sintered, Non-Asbestos Organic
    Total Lining Area
    14.8 Sq. In.
    Usable Lining Thickness Per Pad
    .47 In.
