Spring Applied Hydraulic / Air Release

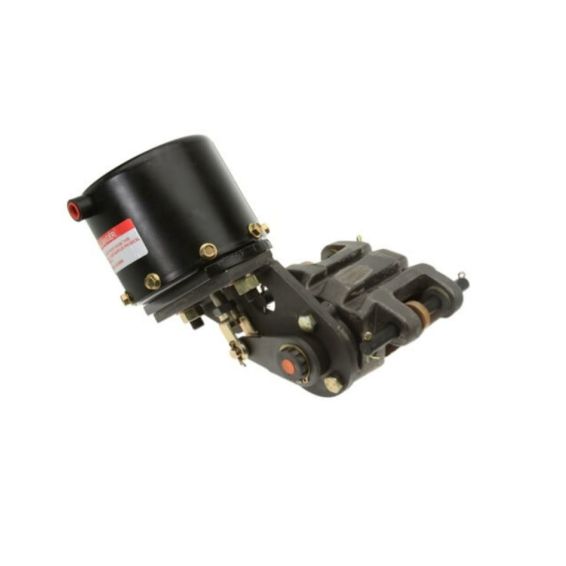

M100SA Mechanical Brake

  • Capable of 10,000 Lbs. of clamp force
  • Self adjusting for friction pad wear
  • Fully sealed internal ball ramp mechanism
  • Fully assembled, with air chamber mounted for either CW or CCW operation
  • Quick change pads, retained by mount pins
  • Fast response – capable of 100 milliseconds
  • Chamber can be positioned in 120 degree increments
  • Mechanical release using a wrench
Send a Request

  • Mechanical brake - spring applied air or hydraulic released

  • Weight
    36.5 Lbs.
    Rotor Diameter
    10 To 40 In
    Rotor Thickness
    .375" To .750"
    Lining Type
    Sintered, Non-Asbestos Organic
    Total Lining Area
    14.8 Sq. In.
    Usable Lining Thickness Per Pad
    .47 In.
