Mechanical Brakes

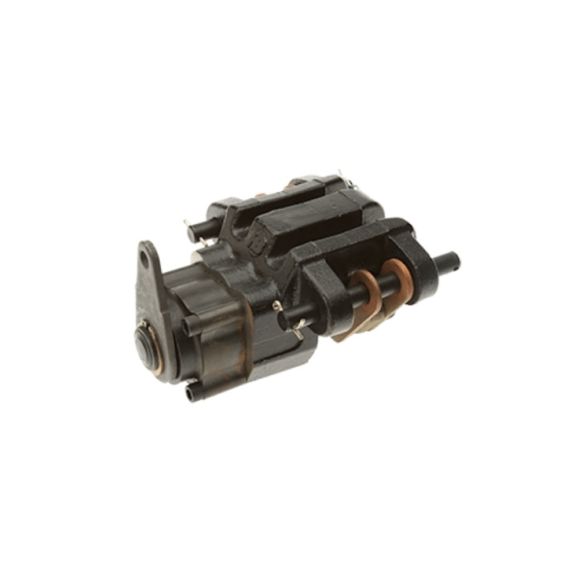

M100HM Mechanical Brake

  • Capable of 10,000 Lbs. of clamp force
  • Fully sealed ball ramp mechanism
  • Self adjusting mechanism minimizes maintenance for pad wear
  • Nodular cast iron housing
  • Splined actuator lever can be positioned in 30o increments
  • Choice of CW or CCW lever actuation
  • Supplied with mount bolts and sealed and lubricated slider pins
Send a Request

  • Mechanical brake for secondary stop or park

  • Weight
    21.0 Lbs.
    Rotor Diameter
    10 To 20 In.
    Rotor Thickness
    .50 To 1.0 In.
    Lining Type
    Non-Asbestos Organic, Sintered
    Total Lining Area
    14.8 Sq. In.
    Usable Lining Thickness Per Pad
    .470 In.
