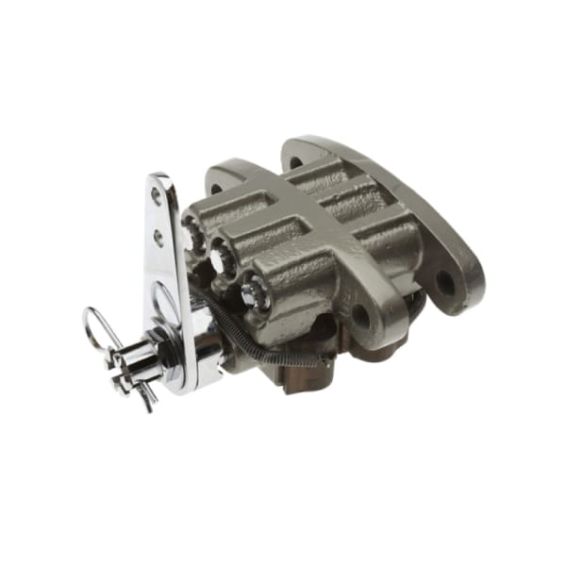

610M Mechanical Brakes

Capable of 7,000 Ibs. of clamp force
Cast nodular iron housing
Designed for quick change friction pads
Unique dual mounting lugs fit either fixed or floating mounts
Pad wear adjustment quickly completed by removal of cotter pin and adjustment to takeup nut
Quick rise on cam for maximum lever efficiency
Both CW and CCW lever actuationa

Weight	13.75 Lbs.
Rotor Diameter	10 To 30 In.
Rotor Thickness	.375" To 1.00"
Lining Type	Sintered, Non-Asbestos Organic
Total Lining Area	9 Sq. In.
Usable Lining Thickness Per Pad	.29 In.
